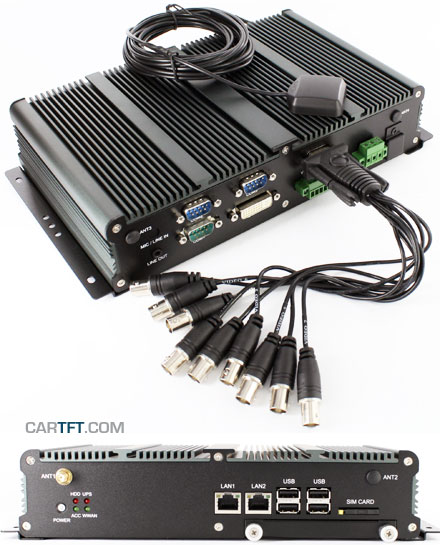

FleetPC-5-VID Mobile DVR Car-PC (AMD G-T56N 2x1.65Ghz, 2GB RAM, Autostart-Controller, 9-36V Automotive PSU, GPS, 4x Channel Video) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an AMD G-T56N 2x1.6GHz CPU and 2GB RAM.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots.
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei EM770W)
- [more]

Share

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an AMD G-T56N 2x1.6GHz CPU and 2GB RAM.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots.
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei EM770W)
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo]

Features :
- Fanless
- AMD G-T56N Dual Core CPU
- AMD Radeon HD 6320 Graphics
- GPS (Atheros Chipsatz)
- 4x Channel Video Input
- 3x RS232
- 2x Gigabit LAN
- DVI-I + DSUB-15 VGA
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 2 x DI / 2 x DO with Relay 12V / 100mA
- Vibration/shock tested

For FleetPC-5 we offer an direct connector cable for our TFT-dispays.

Mobile DVR Specification
Video Input 4 Channels (4 x BNC Connectors)
Video Recording Total 120FPS (NTSC), 100FPS (PAL)@D1 Real-Time
Video Display Total 120FPS (NTSC), 100FPS (PAL)@D1
Resolution Format (S/W MPEG4 or S/W H.264)
NTSC PAL
720x480x30FPS 720x576x25FPS
704x480x30FPS 704x576x25FPS
640x480x30FPS 640x576x25FPS
720x240x30FPS 720x288x25FPS
704x240x30FPS 704x288x25FPS
640x240x30 360x288x25
360x240x30 360x288x25
350x240x30 352x288x25
320x240x30 320x288x25
Audio Input 1 Channel
Audio Format MONO / 8 ~16BITS / 8000~48000HZ
Software SDK for Windows XP, 7/8, Linux 2.6.20 or Higher
PC Specification
Dimensions / Weight 235mm W x 155mm D x 55mm H, 1.5kg
CPU AMD G-T56N Dual Core 2x 1.65GHz
Chipset / FSB AMD A55E Controller Hub
RAM 2x SO-DDR-3 RAM (up to 8GB 1333Mhz) [1x 2GB RAM included]
Graphics AMD Radeon HD 6320
GPS Locosys LS26050
Expansion - 3x Mini-PCIe (1x occupied by GPS, 1x occupied by Video-card)
OS Support Windows XP Home/Pro/Embedded, Windows 7/8, Linux
Vibration & Shock MIL-STD-810F
Operating temperature -30~70°C (with SSD)
Certification CE, FCC, eMark (2009/19/EC, CISPR 25:2008, ISO 7637-2:2004), Railway EN50155
I/O - 2x Gigabit LAN (Realtek RTL8111E)
- 3x RS232 (2x with RS-422/485)
- 4x USB2.0
- GPIO port (2in, 2out, with Relay 12V/100mA)
- SPK Out
- 1x DVI
- 1x Video-Input connector
- 4x SMA Antenna hole (for eg. GPS, GSM/GPRS/3G, WLAN, Bluetooth)
Drive bays 1 x 2.5" SATA HDD/SSD drive bay
Power supply 9~32V DC PSU included
- Power off Delay Time Setting by Software, Default 5min
- Backup Battery Kit (optional)
Scope of supply - FleetPC-5 PC with AMD G-T56N (2x1.6Ghz), 2GB RAM, mounting
- 1x Pigtail + antenna for GPS
- 1x Video-Input-cable
Data sheet Download (PDF)
Data sheet Print view
Device Specification Download (PDF)
AMD G-T56N Benchmark Download
Manual [EN] Download
Drivers (Windows) Download
Internal GPS Module Download
Drivers (GPS) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 1 ratings
5 von 5 Sternen from Reitergast am 24.01.2015 | See all my comments

super Teil - vorsicht bei den internen Anschlüssen- es funktionieren nicht alle(z.b VGA)

Assignment of Antenna-Connection
ANT 1 = GPS (Please connect the included GPS Antenna to this Connector)

-- If you order additional to the System WLAN/Bluetooth or 3G/UMTS/LTE Device we will assemble the Antenna-Connectors as follow: --

ANT 2 = 3G/LTE/UMTS
ANT 3 + 4 = BT/WLAN
