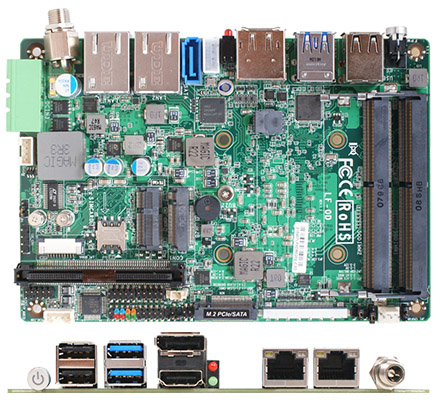

Jetway JLF0DV-70 3,5" (Intel Whiskey Lake-U CPU 4305UE, 2x LAN, 12-36V DC)

Jetway JLF0DV-70 3,5" (Intel Whiskey Lake-U CPU 4305UE, 2x LAN, 12-36V DC)
  • Whiskey Lake-U !
  • 3,5" !
  • 2x LAN !

  • Intel® 8th Gen Whiskey Lake-U 1.6GHz/QC Core MCP Processor
  • 2* DDR4 2400MHz, up to 64GB
  • 1* Intel®I219LM GbE, 1* Intel® i225-V 2.5GbE
  • 1* SATA III (6Gb/s), 1* M.2 (M-key), 1* M.2 E-key Support CNVi, 1* M.2 B-key Support 4G/5G Module
  • 1* HDMI/DP + 1* eDP
  • 2* RS232/422/485, 2* USB3.0, 3* USB2.0
  • 12~36V DC in
  • 3.5” Form Factor (146 *102 mm)
  • JLF0DV-42 support TPM2.0 (option)


Share

369.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
Model – JLF0DV-20 (8365UE)
– JLF0DV-22 (8365UE, TPM2.0)
– JLF0DV-40 (i5-8265U)
– JLF0DV-42 (i5-8265U, TPM2.0)
– JLF0DV-70 (4305UE)
– JLF0DV-72 (4305UE, TPM2.0)
Form Factor – 3.5” ( 146 * 102mm)
Processor System – Intel® 8th Gen Whiskey Lake-U Quad Core MCP Processor
– Intel SoC chipset
– AMI 128Mb Flash ROM BIOS
Memory – 2* DDR4 2400MHz DRAM SO-DIMM up to 64GB
Storage – 1* M.2 M-key (2242/2280, SATA or NVMe- PCI-Ex4)
– 1* SATAIII (6.0Gb/s)
Expansion Slot – 1* M.2 E-key (2230,Support CNVi)
– 1* M.2 B-key (3042/3052, Support 4G/5G Module)
– 1* SIM Card Holder (Nano)
Ethernet – 1* Intel® i219LM GbE
– 1* Intel® i225-V 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 1* HDMI 1.4 (Max Resolution : 4096×2304@24Hz)
– 1* DP (Max Resolution : 4096×2304@60Hz)
– 1* eDP (Max Resolution : 4096×2304@60Hz)
– Support Triple Displays
Audio – USB Audio
– 3W Amplifier speaker
Internal I/O – 1* USB2.0
– 2* RS232/422/485
– 1* SATAIII
– 3* M.2 (M-key, E-key, B-key)
– 1* GPIO (8 bit, 5V)
– 1* AT mode
– 1* I2C/SMBUS
– 1* FP_Audio
– 1* Speaker
– JLF0DV-42 support TPM2.0 (Option)
External I/O – 1* HDMI
– 1* DP
– 2* RJ45
– 2* USB3.0
– 2* USB2.0
– Power button
– Power LED, HDD LED
– 12~36V DC-in jack
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Power DC-in 12~36V, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Linux
