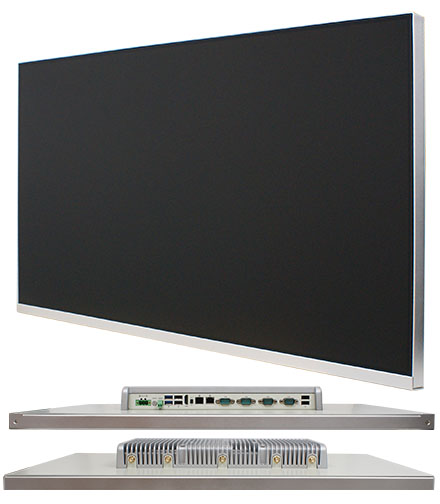

Jetway HPC270C-DCP6305E Panel-PC (Intel Tiger Lake E6305E) [27" Capacitive MultiTouch Panel TFT, IP65, 12-36V DC-in]

Jetway HPC270C-DCP6305E Panel-PC (Intel Tiger Lake E6305E) [27" Capacitive MultiTouch Panel TFT, <b>IP65, 12-36V DC-in</b>]
  • TigerLake 6305E CPU !
  • 27" !
  • IP65 !
  • 12-36V !

  • 27” 300 nits brightness TFT LCD with LED backlight
  • LG in-cell 10-points Multi Capacitive Touch Panel
  • A true Flatand Slim Design, Clear Image, support Cover-Glass Elimination
  • Front IP65 for protection against water and dust
  • Support for easy HDD and DARM installation
  • Kabelloses Design
  • 12~36V DC-input Support, with EOS, OVP design


Share

1159.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
 Display
Front Bezel – IP65, NEMA 4 rugged protection, metal front bezel
Display Type – 27″ With LED Backlight
Brightness (cd/m²) – 300 nits
Display Color – 16.7M
Resolution – 1920 x 1080 @60Hz
Viewing Angle (H/V) – 178°/178°
Pixel Pitch – 0.1038 x 0.1038mm
Aspect Ratio – 16:9
Contrast Ratio – 1000:1
Response Time – 13ms
 Touch Screen
Type – projected capacitive type
Active Range – 597.888 x 336.312mm ±0.2mm
Surface Hardness – ≧6H (JIS-5400)
 CASE
Panel Material – Aluminum
Case Material – Iron case
Color – white
Coating Requirement – Spray Paint
 Main System
CPU – Intel® Tiger Lake 6305E 1.8GHz/DC processor
RAM – 2* DDR4 SO‐DIMM (Max 64GB)
Flash ROM – 256MB SPI Flash ROM
Speaker – 2* 2W/8Ohm
Watchdog Timer – 256 levels, 0~255 sec.
OS Support – Windows 10 / 11/Linux
 Storage
SATA – 1* 2.5” SATA HDD
M.2 (M Key) – 1 * M.2 Socket (2242/2280 PCI-Ex4)
 Expansion
M.2 (E Key) – 1* M.2 E Key 2230 for WIFI or 3G/4G (Support CNVi) - 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)
 I/O Connector
I/O Ports and Switches - 2* USB3.2 (Gen1)
- 4* USB2.0
- 2* RS232/422/485
- 2* RS232 (option 16bit GPIO)
- 1* HDMI
- 1* AT/ATX Mode Button
- 2* RJ45(1* Intel® I225‐V 2.5GbE, 1* Intel® I219LM GbE)
- 1* 12~36V DC‐in Locking Jack
- 1* Power button
- 1* 2pin Front Power button
 Power Input
Input Power - AC version: 100~240V AC‐DC 90W power adapter or
- DC version: 12VDC with over current protection fuse
Power Consumption – 48W
 Dimension
Case Dimensions – 611.20 x 359.18 x59.00mm
 Certifications
Certifications – CE, FCC, IP65(Front), Option
 Safety
Shock – 1ms duration
Vibration – 5~500Hz/1 Grms
 Environment
Temperature – Operating: -10 ~ 50° C
– Storage: -20 ~ 70° C
Data sheet Download (PDF)
