CTFPND-12B (10" Android TabletPC/PND, Ruggedized, 8x2.0Ghz, 4GB RAM, 32GB eMMC, GPS/WLAN/BT/LTE, RFID (NFC), 2x RS232)

CTFPND-12B (10" Android TabletPC/PND, Ruggedized, 8x2.0Ghz, 4GB RAM, 32GB eMMC, GPS/WLAN/BT/LTE, RFID (NFC), 2x RS232)
3D 360° View
  • android
  • RFID (NFC) !
  • GPS ! Bluetooth ! WiFi !
  • Cradle included !

  • Preinstalled Android 12
  • Octacore CPU with 2,0 GHz, 4GB RAM and 32GB eMMC
  • Wireless WiFi, BT, 2G/3G/4G Network, DockingStation with RJ45 LAN Port
  • Powerfull 7600mAh Batterie
  • Operating Temperature: -10°C - 60°C
  • 16MB Autofocus Camera, 8.0MP Frontcamera
[more]

Share

709.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)
1-15WUSB PD

Add to cart

  • Preinstalled Android 12
  • Octacore CPU with 2,0 GHz, 4GB RAM and 32GB eMMC
  • Wireless WiFi, BT, 2G/3G/4G Network, DockingStation with RJ45 LAN Port
  • Powerfull 7600mAh Batterie
  • Operating Temperature: -10°C - 60°C
  • 16MB Autofocus Camera, 8.0MP Frontcamera



The mobile terminal is designed for Mobile Workers, even in Extreme Conditions. Be adopted by field service provider, SaaS vendor and solution provider, warehouse operator, construction contractor, use for industrial applications.

Truck driver use it for navigation, routing, dispatching, e-signatures, proof-of-delivery, order management, vehicle maintenance, fuel consumption management, logbook, and fleet operators use it for ELD and extend digital workflow to mobile vehicles, improving productivity.

CTFPND-12 is a high performance tablet terminal with 10" display, IP67 rated. Equipped with octa core processor, advanced GPS chiset, 4G/3G/WLAN module, with RFID, Bluetooth, camera and support hardware customization.

If you have a project with serious size and are able to sign a NDA we can provide Androis-OS-system builder kit for this device which enables you to create your own Android OS image (eg. own boot logo, own preinstalled apps and settings, etc...) !

PHYSICAL CHARACTERISTICS
Dimension 260 x 174 x 17mm, 930g
Display 10inch, IPS panel (1920 x 1200 pixel) / LED Backlight
Capacitive multi-touch / Glove, Wet, Stylus
Power Rechargeable Lit hium-ion Battery 3.85V 7600mAh
Expansion Slot User accessible micro SD card slot
(standard supports up to 512G B)
SIM 2 x Nano-SIM
Interface Docking Connector (18-pin)
1xUSB Type C 2.0 OTG
1x3.5mm Audio Headphone Jack
2xUSB Type A 2.0 OTG on the cradle
1xRJ45 Connector on the cradle
1xType C on the cradle for power supply
Notification Audible tone, Charging Status LED
Voice / Audio Speaker, Microphone , headphone
Keypad On-screen keypad
PERFORMANCE CHARACTERISTICS
CPU 2.0GHz Octa Core Processor
OS
 Android 12 with GMS or without GMS (Optional)
Memory 4GB LPDDR4X
32GB eMMC
WIRELESS WAN DATA AND VOICE COMMUNICATION
Radio Frequency GSM: 850/900/1800/1900MHz
WCDMA: B1/B2/B4/B5/B8
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28
LTD TDD: B38/B40/B41
GPS GPS, GLONASS, GALILEO
WIRELESS LAN / LAN
Radio 802.11 a/b/g/n/ac; 802.11 d/e/ h/i/j/k/r/v/w
Data Rate 5GHz: 802.11a/n/ac - up to 500 Mbps
2.4GHz: 802.11b/g/n — up to 144Mbps
Security
Encryption
and		 WFA WPA/WPA2 Personal, AES-CCMP,
WPI-SMS4, GCMP, WPS2.0, WAPI (hardware)
Bluetooth v2.1+EDR, 3.0+HS, v4.1+HS
Ethernet Support w/Cradle
DATA CAPTURE / SENSOR
Camera Rear camera 16MP AF
From camera 8.0MP
NFC Supported TAG-ICs:
MIFARE Classic 1k/4k/Plus, MIFARE UltraLight
MIFARE UltraLight C, MIFARE DESFire
MIFARE DESFire Ev1, ISO 14443 A & B
ISO 15693
Serial
Communication		 2 x RS232
Optional Scanner (1D&2D Imagers)
Video Input (1 Channel with Cradle / 4 Channel with Camera Hub)
Light Sensor Ambient Light
Motion Sensor Accelerometer, E-Compass, Gyroscope
USER ENVIRONMENT
Temperatures Operating: -10℃ to 60℃ / -14° F to 140° F
Storage: -20℃ to 70℃ / -4℉ to 158℉
Humidity 90% non-condensing
Drop Spec. 1.2m / 4 ft. to drop per MIL STD 810G
Sealing IP67
Certifications CE, FCC, E-Mark
Electrostatic
Discharge (ESD)		 +/-8kVdc air discharge
+/-4kVdc direct discharge
+/-4kVdc indirect discharge

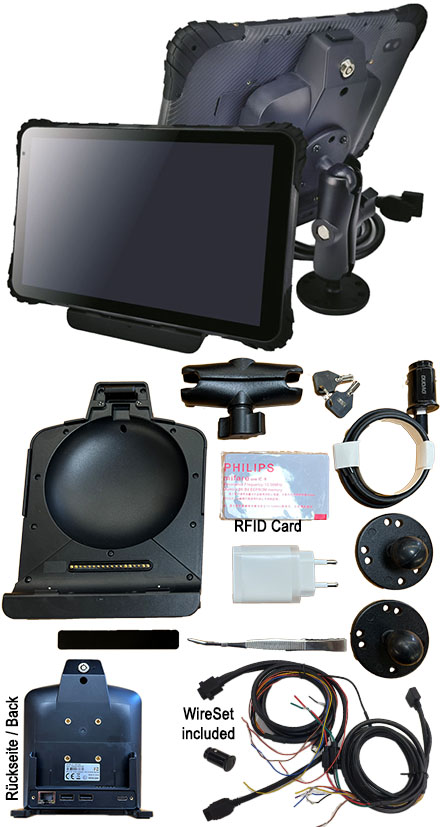

Accessories
Scope of Suppy 1. Vehicle cradle or desktop dock station
2. Tool for removing Nano SIM
3. Cable used for vehicle cradle, it can connect to cradle bottom side
4. tape for cradle back connector if not used
5. High power car charger (connected to back type C connector)
6. High power home adapter (the tablet may not able to charge if only use standard 5V, 2A adapter)
7. Type C cable for home adapter
8. cradle extension cable (connected to new cable for power supply)
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Quick Start Quide Download
Pinout Download
Manual Download
