| Main |
|
| Range of product |

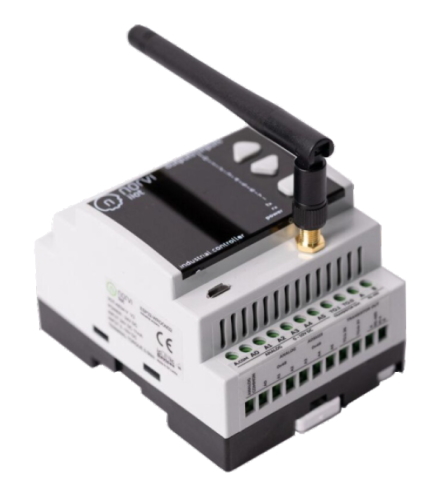

NORVI GSM |
| Product type |
Programmable Controller |
| Certifications |
EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnec Compability (EMC) Annex III, Part B, Module C |
| Rated supply voltage |
24V DC |
| Communication |
WiFI / Bluetooth
LTE / EDGE - Quectel EC21
RS485 |
| OLED Display protocol |
I2C |
| Analog input range |
4 - 20mA |
| Analog input resolution |
16 bit |
| Transistor Output Rating |
500mA 300mW |
| Complementary |
|
| Number of Expansions |
----- |
| Supply voltage limits |
20.4....28.8V |
| Inrush current |
<=50A |
| Power consumption in W |
32.6......40.4 with all outputs ON |
| Discrete logic input |
Sink or source |
| Discrete input voltage |
24V |
| Discrete input voltage type |
DC |
| Voltage state 1 guaranteed |
>=15 V for input |
| Voltage state 0 guaranteed |
<=5 V for input |
| Discrete input current |
5 mA for input |
| Input impedance |
4.7k Ohm for input |
| Memory capacity |
Refer datasheet of ESP32-WROOM32 |
| Battery type |
----- |
| Backup time |
----- |
| Local signalling |
1 LED green for PWR |
| Electrical connection |
Removable screw terminal block for inputs and outputs (pitch 5.08 mm) |
| Mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Plate or panel with fixing kit |
| Height |
90.50 mm |
| Depth |
56.60 mm |
| Width |
60.60 mm |
| Product weight |
0.43 Kg |
| Environment |
|
| Resistance to electrostatic discharge |
4kV on contact 8kV on air |
| Resistance to electro magnetic fields |
10 V/m (80 MHz ...... 1GHz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ...... 3 GHz) |
| Immunity to microbreaks |
10 ms |
| Relative humidity |
10....95% without condensation in operation |
| IP degree of protection |
IP20 |
| Operating Temperature |
–10 … +85° C (14...185 °F) |
| Storage Temperature |
–25 … +85° C (–13...185 ° F) |
| Operating altitude |
0...2000m |
| Storage altitude |
0...3000m |
| Shock resistance |
15 gn for 11 ms |
