Jetway HBJC313U591-3160-B (Intel Braswell N3160 SoC, 4x 2,24 Ghz) [2x LAN, FANLESS]

Jetway HBJC313U591-3160-B (Intel Braswell N3160 SoC, 4x 2,24 Ghz) [2x LAN, <b>FANLESS</b>]
  • Intel Brasswell SoC !
  • N3160 CPU !
  • NUC Form Factor !

  • NUC Form Factor (101mm X 101mm) Design for Fanless Systems
  • 1 * SO-DIMM DDR3L 1600MHz up to 8GB
  • 1 * COM , 1 * SIM Card Slot & 2 * GbE
  • Supports 2 * HDMI and 1 * DP for 3 Independent Display
  • Provides DC-12V_3.3A_40W Adapter


Share

379.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
Dimensions – 110(D) * 116(W) * 49(H) mm
Construction – Top cover & I/O plate –Aluminum; Base- Metal
MB model – JNU591-3160
Part No Non-Wifi Mini PCIe ac Wifi card
– HBJC313U591-3160-B (Default) – HBJC313U591Z-3160B
CPU – Intel® Braswell N3160 SoC Processor 1.6GHz (up to 2.24GHz)
BIOS – AMI UEFI 64 Mb
Memory – 1 * DDR3L SO-DIMM slot (Max. to 8GB)
Storage – 1 * full size Mini PCIe slot for Mini PCIe /mSATA Device

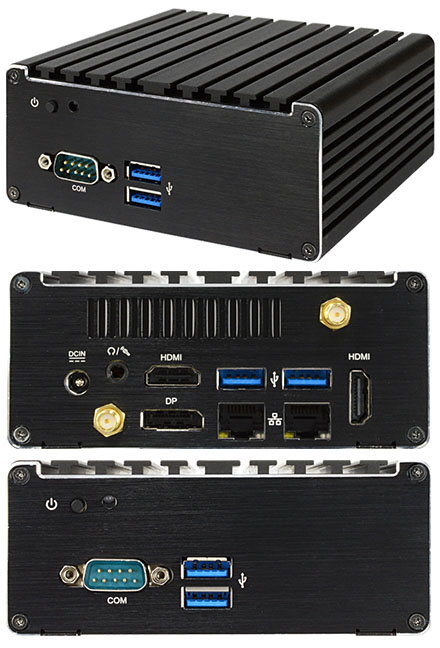

Front I/O Port – 2 * USB3.0 (type A)
– 1 * COM port
– 1 * Power button
Rear I/O Port – 2 * USB 3.0 (type A)
– 2 * HDMI 1.4b (Max. Resolution: 2560 * 1600@60Hz)
– 1 * DP 1.1a (Max. Resolution: 2560 * 1600@60Hz)
– 2 * RJ45 (GbE)
– Wi-Fi (option)
– 1 * Line out/MIC Combo
– 1 * DC-in jack
Network – 1 * half size Mini PCIe slot (for Mini-PCIe WiFi module)
– 1 * SIM card holder
Power Source – Adapter : AC_90~240V / DC_12V / 40W
Certification – EMC : CE , FCC
– Safety : RoHS , ErP
Environment – Operating Temperature : 0°C~50°C with air flow (mSATA)
– Storage Temperature : -10°C~70°C
Mounting Bracket – Wall / VESA / DIN Rail combo mounting Kit
Packing – Net Weight：0.9 KG
– Gross Weight：1.3 KG
– Color Box Dimension：158(W) x 167(D) x 123.6(H) mm
