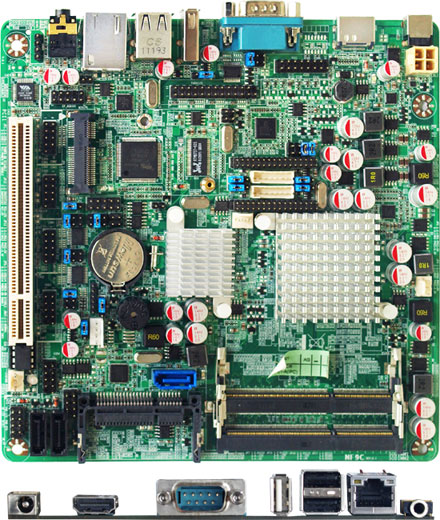

Jetway JNF9C-2800 (Intel Cedar Trail-M)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Processor N2600 / N2800 + NM10 Chipset
1 * DDR3 800MHz Single CH SO-DIMM up to 2GB
Support DirectX 9 Graphics up to 640MHz
Support 1 * Serial ATAII (3Gb/s) & 2 * Serial ATAIII (6Gb/s) Devices
Integrated Realtek ALC662 HD Audio CODEC with 6-CH
Integrated 18-bits Single CH & 24-bits Dual CH LVDS
Supports 1 * Realtek RT8111EVL Gigabit LAN
Supports ACPI S3 Function
Support CPU Smart FAN
Support Watch dog Technology
Mini-ITX Form Factor(17cm x 17cm)
Slim & Fanless design, within 2cm height

[more]

RAM :

Processor N2600 / N2800 + NM10 Chipset
1 * DDR3 800MHz Single CH SO-DIMM up to 2GB
Support DirectX 9 Graphics up to 640MHz
Support 1 * Serial ATAII (3Gb/s) & 2 * Serial ATAIII (6Gb/s) Devices
Integrated Realtek ALC662 HD Audio CODEC with 6-CH
Integrated 18-bits Single CH & 24-bits Dual CH LVDS
Supports 1 * Realtek RT8111EVL Gigabit LAN
Supports ACPI S3 Function
Support CPU Smart FAN
Support Watch dog Technology
Mini-ITX Form Factor(17cm x 17cm)
Slim & Fanless design, within 2cm height

Product Accessories
- 3x COM cable
- Manual
- CD
- 2x SATA cable
- I/O shield
- 1x power cable

CPU	INTEL® Cedar Trail-M Processor N2600(1.6GHz) / N2800 (1.86GHz)
Chipset	INTEL®NM10 Express chipset
Memory	1 * DDR3 800MHz Single CH SO-DIMM up to 2GB
Expansion Slots	1 * PCI slot 1 * MINI PCI-E
Storage	1 * Serial ATAII (3Gb/s) & 2 * Serial ATAIII (6Gb/s) connectors 1 * CFast card socket
Audio	Realtek ALC662 6-Channel HD Audio
Ethernet LAN	1 * RTL8111E PCI-EVL Gigabit LAN
LVDS	1 * 18-bits Single CH & 1 * 24-bits Dual CH LVDS connectors
USB	Embedded 7 * USB 2.0/1.1
Special Features	Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O	3 * USB 2.0/1.1 ports 1 * RJ-45 port 1 * HDMI port 1 * COM port Line-out connector 1 * 12V DC in
Internal I / O	2 * USB 2.0/1.1 headers for 4 USB 2.0 ports 1 * KB/MS headers 1 * VGA header NB / Chassis Fan connectors; 2 * LVDS headers & 1 * GPIO header & 1 Parallel headers 3 * COM headers ( COM4 for RS232/422/485) 1 * AUDIO header 1 * chassis intrusion header
BIOS	AMI 16MB DIP Flash ROM
Form Factor	Mini ITX Form Factor (170mm x 170mm)
Functional	ATM, Security, Digital Signage, POS, General Application, Transportation
Certificate	CE, FCC, RoHS
Temperature	Operating within 0~60 centigrade Storage within -20-85 centigrade

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (ARM)	Download (PDF)
Jetway Catalog (Mainboards)	Download (PDF)
